A final target of this post is to compare undercloud configuration
been built by QuickStart and undercloud configuration been built per
official documentation
for Mitaka stable , please see Attempt of official Mitaka TripleO HA install via instack-virt-setup
Final version of instructions set may bee seen here :-
Stable Mitaka HA instack-virt-setup on CentOS 7.2 VIRTHOST
========================
TripleO QuickStart case
========================
First of all right before running `openstack overcloud deploy --templates .... `
Run on undercloud VM following commands :-
[stack@undercloud ~]$ sudo ovs-vsctl show
b8b5ecbc-dc8d-43b8-8f03-09896d1b08b3
Bridge br-int
fail_mode: secure
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
Port "tapd7a65b7a-48"
tag: 1
Interface "tapd7a65b7a-48"
type: internal
Bridge br-ctlplane
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Port br-ctlplane
Interface br-ctlplane
type: internal
Port "eth1"
Interface "eth1"
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
ovs_version: "2.5.0"
=============================
[root@undercloud ~]# ifconfig
br-ctlplane: flags=4163 mtu 1500
inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::28e:5aff:fe16:9ba1 prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:a1 txqueuelen 0 (Ethernet)
RX packets 3383615 bytes 264121585 (251.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 4873995 bytes 23750747704 (22.1 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.23.10 netmask 255.255.255.0 broadcast 192.168.23.255
inet6 fe80::28e:5aff:fe16:9b9f prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:9f txqueuelen 1000 (Ethernet)
RX packets 48092 bytes 42203536 (40.2 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 35731 bytes 4188571 (3.9 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::28e:5aff:fe16:9ba1 prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:a1 txqueuelen 1000 (Ethernet)
RX packets 3385562 bytes 264368815 (252.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 4876692 bytes 23773014677 (22.1 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 3065638 bytes 25610179577 (23.8 GiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3065638 bytes 25610179577 (23.8 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
virbr0: flags=4099 mtu 1500
inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
ether 52:54:00:eb:ef:39 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
vlan10: flags=4163 mtu 1500
inet 10.0.0.1 netmask 255.255.255.0 broadcast 10.0.0.255
inet6 fe80::5ce2:8eff:fed9:2f89 prefixlen 64 scopeid 0x20
ether 5e:e2:8e:d9:2f:89 txqueuelen 0 (Ethernet)
RX packets 1154 bytes 176564 (172.4 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 1759 bytes 22168381 (21.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
===============================================
Analyze code undercloud-post-install.sh following bellow
===============================================
[stack@undercloud ~]$ cat undercloud-post-install.sh
#!/bin/bash
# Prepare the undercloud for deploy
set -eux
# Source in undercloud credentials.
source /home/stack/stackrc
######################
# Set of standard commands
######################
# Upload images to glance.
openstack overcloud image upload \
openstack baremetal import --json instackenv.json
openstack baremetal configure boot
# Perform introspection if requested.
. . . . . . . .
################################################
# Here follows critical VM network configuration portion
################################################
# enable NAT for "external" network
RULE="-s 10.0.0.1/24 ! -d 10.0.0.1/24 -j MASQUERADE"
if ! sudo iptables -t nat -C BOOTSTACK_MASQ $RULE; then
sudo iptables -t nat -A BOOTSTACK_MASQ $RULE
sudo sh -c 'iptables-save > /etc/sysconfig/iptables'
fi
sudo bash -c 'cat < /etc/sysconfig/network-scripts/ifcfg-vlan10
DEVICE=vlan10
ONBOOT=yes
DEVICETYPE=ovs
TYPE=OVSIntPort
BOOTPROTO=static
IPADDR=10.0.0.1
NETMASK=255.255.255.0
OVS_BRIDGE=br-ctlplane
OVS_OPTIONS="tag=10"
EOF'
sudo ifup ifcfg-vlan10
# clone the t-h-t templates if needed
=========================================
So finally up on overcloud-deployment completion :-
=========================================
[root@undercloud ~]# ip netns
qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2
[root@undercloud ~]# ip netns exec qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2 ifconfig
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
tapd7a65b7a-48: flags=4163 mtu 1500
inet 192.0.2.5 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::f816:3eff:fe9d:1a65 prefixlen 64 scopeid 0x20
ether fa:16:3e:9d:1a:65 txqueuelen 0 (Ethernet)
RX packets 1109 bytes 103765 (101.3 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 943 bytes 91866 (89.7 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@undercloud ~]# ip netns exec qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2 route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.0.2.1 0.0.0.0 UG 0 0 0 tapd7a65b7a-48
192.0.2.0 0.0.0.0 255.255.255.0 U 0 0 0 tapd7a65b7a-48
=======================================================
Get back to `ovs-vsctl show` on undercloud generated by QuickStart
=======================================================
Focus on device tapd7a65b7a-48 and vlan10
[stack@undercloud ~]$ sudo ovs-vsctl show
b8b5ecbc-dc8d-43b8-8f03-09896d1b08b3
Bridge br-int
fail_mode: secure
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane} <=== veth pair connecting br-int
Port br-int and br-ctlplane
Interface br-int
type: internal
Port "tapd7a65b7a-48"
tag: 1
Interface "tapd7a65b7a-48"
type: internal
Bridge br-ctlplane
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Port br-ctlplane
Interface br-ctlplane
type: internal
Port "eth1"
Interface "eth1"
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane} <=== veth pair connecting
ovs_version: "2.5.0" connecting br-int and
br-ctlplane
----------------------------------------------------
2 instack running
- baremetalbrbm_0 shut off
- baremetalbrbm_1 shut off
- baremetalbrbm_2 shut off
- baremetalbrbm_3 shut off
[stack@ServerCentOS72 ~]$ ssh root@192.168.122.193
Last login: Mon Jul 25 13:59:52 2016 from 192.168.122.1
[root@instack ~]# su - stack
Last login: Mon Jul 25 13:59:54 UTC 2016 on pts/5
[stack@instack ~]$ . stackrc
[stack@instack ~]$ sudo ovs-vsctl show
bc1c13cd-3651-4f79-87df-bdaf4f5fec01
Bridge br-ctlplane
Port br-ctlplane
Interface br-ctlplane
type: internal
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
Port "eth1"
Interface "eth1"
Port "vlan10"
tag: 10
Interface "vlan10"
error: "could not open network device vlan10 (No such device)"
Bridge br-int
fail_mode: secure
Port "tap41e6fddf-31"
tag: 1
Interface "tap41e6fddf-31"
type: internal
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
ovs_version: "2.5.0"
inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 0 (Ethernet)
RX packets 13 bytes 1038 (1.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 816 (816.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.122.193 netmask 255.255.255.0 broadcast 192.168.122.255
inet6 fe80::5054:ff:fe6f:906a prefixlen 64 scopeid 0x20
ether 52:54:00:6f:90:6a txqueuelen 1000 (Ethernet)
RX packets 1674 bytes 213273 (208.2 KiB)
RX errors 0 dropped 9 overruns 0 frame 0
TX packets 1078 bytes 163033 (159.2 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 1000 (Ethernet)
RX packets 8 bytes 648 (648.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 14 bytes 1108 (1.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 31888 bytes 10276736 (9.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 31888 bytes 10276736 (9.8 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
=======================================================
Thus any attempt to activate "Network Isolation" having External Network
running within
=======================================================
openstack overcloud deploy --templates --libvirt-type qemu \
--control-scale 3 \
--compute-scale 1 \
-e /usr/share/openstack-tripleo-heat-templates/environments/puppet-pacemaker.yaml \
--ntp-server pool.ntp.org
after committing all instructions from http://docs.openstack.org/developer/tripleo-docs/basic_deployment/basic_deployment_cli.html
is supposed to fail. Instack VM is missing device vlan10 supposed to become external interface attached as OVS port to br-ctlplane. What I believe was done in http://mariosandreou.com/tripleo/2016/06/17/deploy-tripleo-stable-mitaka.html without explicitly advertising.
=================================================================
Get back to post mentioned in the header , we want Mitaka Tripleo deployment
to run on instack VM with "Network Isolation" setting up External network,
Network serving VXLAN tunnels . In regards of Ceph Nodes overcloud deployment "Network Isolation" is obviously extremely important.
So, vlan10 device creation should be done with no doubts.
=================================================================
sudo bash -c 'cat < /etc/sysconfig/network-scripts/ifcfg-vlan10
DEVICE=vlan10
ONBOOT=yes
DEVICETYPE=ovs
TYPE=OVSIntPort
BOOTPROTO=static
IPADDR=10.0.0.1
NETMASK=255.255.255.0
OVS_BRIDGE=br-ctlplane
OVS_OPTIONS="tag=10"
EOF'
sudo ifup ifcfg-vlan10
sudo iptables -A BOOTSTACK_MASQ -s 10.0.0.0/24 ! -d 10.0.0.0/24 -j MASQUERADE -t nat
=============================
Make sure updates are done
=============================
[boris@ServerCentOS72 ~]$ sudo su -
[sudo] password for boris:
Last login: Tue Jul 26 03:58:20 MSK 2016 on pts/0
[root@ServerCentOS72 ~]# su - stack
Last login: Tue Jul 26 03:58:45 MSK 2016 on pts/0
[stack@ServerCentOS72 ~]$ ssh root@192.168.122.193
Last login: Tue Jul 26 01:01:49 2016
[root@instack ~]# su - stack
Last login: Tue Jul 26 01:01:34 UTC 2016 on pts/0
[stack@instack ~]$ sudo ovs-vsctl show
bc1c13cd-3651-4f79-87df-bdaf4f5fec01
Bridge br-ctlplane
Port "eth1"
Interface "eth1"
Port br-ctlplane
Interface br-ctlplane
type: internal
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Bridge br-int
fail_mode: secure
Port "tap41e6fddf-31"
tag: 1
Interface "tap41e6fddf-31"
type: internal
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
ovs_version: "2.5.0"
[stack@instack ~]$ ifconfig
br-ctlplane: flags=4163 mtu 1500
inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 0 (Ethernet)
RX packets 2751712 bytes 205714576 (196.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2711617 bytes 12789727774 (11.9 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.122.193 netmask 255.255.255.0 broadcast 192.168.122.255
inet6 fe80::5054:ff:fe6f:906a prefixlen 64 scopeid 0x20
ether 52:54:00:6f:90:6a txqueuelen 1000 (Ethernet)
RX packets 4767 bytes 590862 (577.0 KiB)
RX errors 0 dropped 9 overruns 0 frame 0
TX packets 3138 bytes 488880 (477.4 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 1000 (Ethernet)
RX packets 2751684 bytes 205708317 (196.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2711674 bytes 12789742191 (11.9 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 319388 bytes 1493930109 (1.3 GiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 319388 bytes 1493930109 (1.3 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
vlan10: flags=4163 mtu 1500
inet 10.0.0.1 netmask 255.255.255.0 broadcast 10.0.0.255
inet6 fe80::1478:deff:fe20:7b86 prefixlen 64 scopeid 0x20
ether 16:78:de:20:7b:86 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 816 (816.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
==================================================
Proceed as follows. Create file network-environment template :-
==================================================
[stack@instack ~]$ cat network_env.yaml
{
"parameter_defaults": {
"ControlPlaneDefaultRoute": "192.0.2.1",
"ControlPlaneSubnetCidr": "24",
"DnsServers": [
"192.168.23.1"
],
"EC2MetadataIp": "192.0.2.1",
"ExternalAllocationPools": [
{
"end": "10.0.0.250",
"start": "10.0.0.4"
}
],
"ExternalNetCidr": "10.0.0.1/24",
"NeutronExternalNetworkBridge": ""
}
}
=====================
Then run :-
=====================
[stack@instack ~]$ source stackrc
[stack@instack ~]$ openstack overcloud deploy --templates --control-scale 3 \
--compute-scale 1 \
--libvirt-type qemu \
--ntp-server pool.ntp.org \
-e /usr/share/openstack-tripleo-heat-templates/environments/puppet-pacemaker.yaml \
-e /usr/share/openstack-tripleo-heat-templates/environments/network-isolation.yaml \
-e /usr/share/openstack-tripleo-heat-templates/environments/net-single-nic-with-vlans.yaml \
-e $HOME/network_env.yaml
. . . .
Stack overcloud CREATE_COMPLETE
/home/stack/.ssh/known_hosts updated.
Original contents retained as /home/stack/.ssh/known_hosts.old
Skipping "horizon" postconfig because it wasn't found in the endpoint map output
PKI initialization in init-keystone is deprecated and will be removed.
Warning: Permanently added '192.0.2.16' (ECDSA) to the list of known hosts.
The following cert files already exist, use --rebuild to remove the existing files before regenerating:
/etc/keystone/ssl/certs/ca.pem already exists
/etc/keystone/ssl/private/signing_key.pem already exists
/etc/keystone/ssl/certs/signing_cert.pem already exists
Connection to 192.0.2.16 closed.
Overcloud Endpoint: http://10.0.0.4:5000/v2.0
Overcloud Deployed

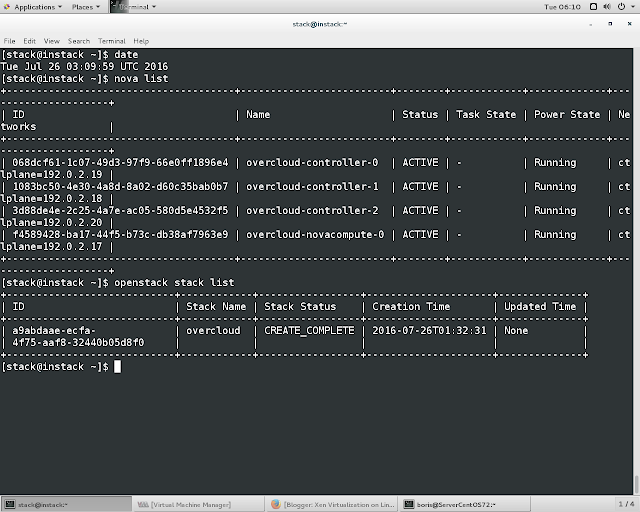

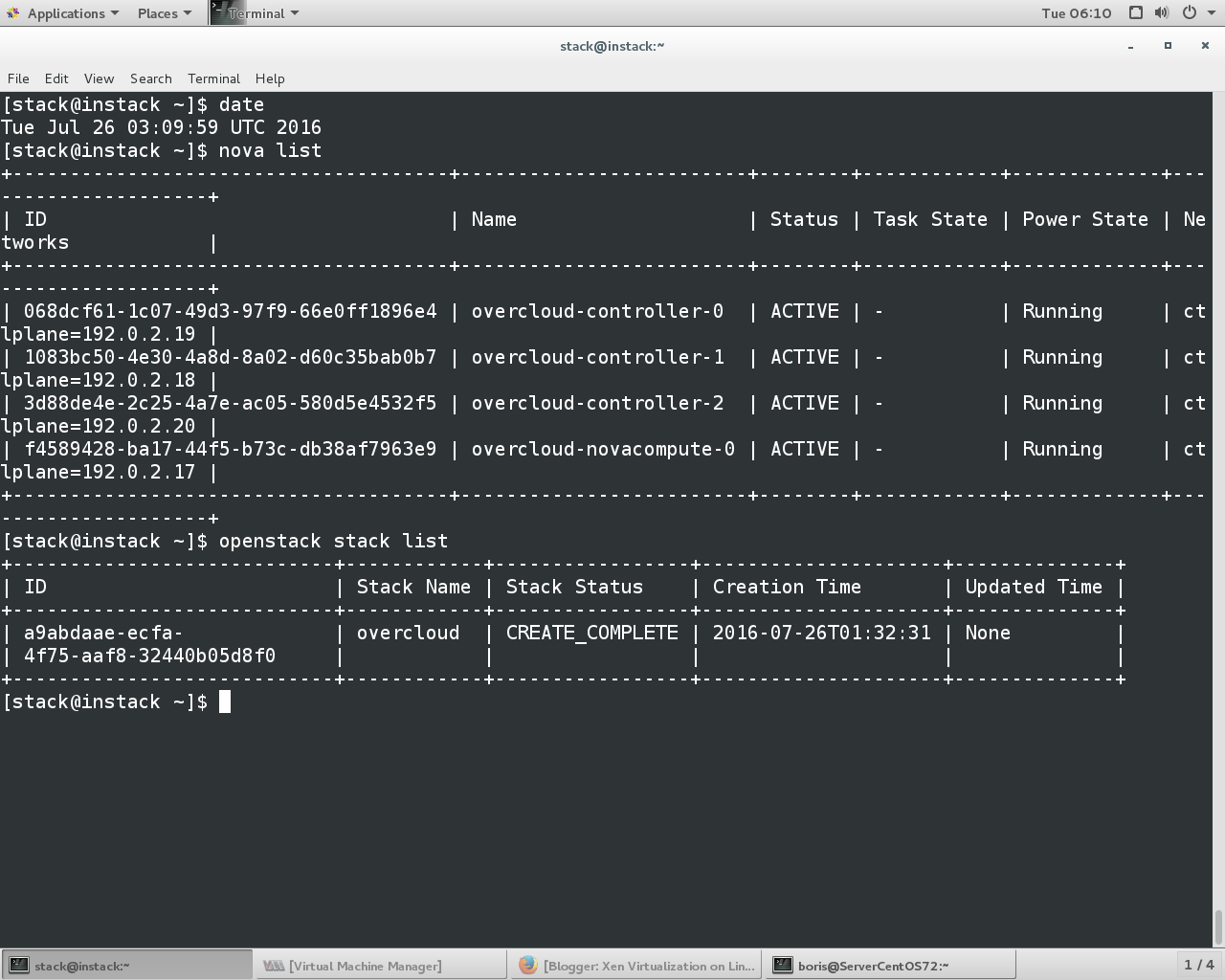

[stack@instack ~]$ nova list
[stack@instack ~]$ neutron net-list
[stack@instack ~]$ ssh heat-admin@192.0.2.19
The authenticity of host '192.0.2.19 (192.0.2.19)' can't be established.
ECDSA key fingerprint is 61:31:94:19:12:51:a3:df:be:22:f6:0a:e7:dc:a1:d7.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.0.2.19' (ECDSA) to the list of known hosts.
Last login: Tue Jul 26 02:00:36 2016 from 192.0.2.1
[heat-admin@overcloud-controller-0 ~]$ sudo su -
[root@overcloud-controller-0 ~]# pcs status
Cluster name: tripleo_cluster
Last updated: Tue Jul 26 02:03:03 2016 Last change: Tue Jul 26 01:58:37 2016 by root via cibadmin on overcloud-controller-0
Stack: corosync
Current DC: overcloud-controller-2 (version 1.1.13-10.el7_2.2-44eb2dd) - partition with quorum
3 nodes and 127 resources configured
Online: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Full list of resources:
ip-192.0.2.16 (ocf::heartbeat:IPaddr2): Started overcloud-controller-0
ip-172.16.2.5 (ocf::heartbeat:IPaddr2): Started overcloud-controller-1
ip-172.16.3.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-2
Clone Set: haproxy-clone [haproxy]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Master/Slave Set: galera-master [galera]
Masters: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: memcached-clone [memcached]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
ip-10.0.0.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-0
ip-172.16.2.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-1
ip-172.16.1.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-2
Clone Set: rabbitmq-clone [rabbitmq]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-core-clone [openstack-core]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Master/Slave Set: redis-master [redis]
Masters: [ overcloud-controller-0 ]
Slaves: [ overcloud-controller-1 overcloud-controller-2 ]
Clone Set: mongod-clone [mongod]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-evaluator-clone [openstack-aodh-evaluator]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-scheduler-clone [openstack-nova-scheduler]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-l3-agent-clone [neutron-l3-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-netns-cleanup-clone [neutron-netns-cleanup]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-ovs-cleanup-clone [neutron-ovs-cleanup]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
openstack-cinder-volume (systemd:openstack-cinder-volume): Started overcloud-controller-0
Clone Set: openstack-heat-engine-clone [openstack-heat-engine]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-api-clone [openstack-ceilometer-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-listener-clone [openstack-aodh-listener]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-metadata-agent-clone [neutron-metadata-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-gnocchi-metricd-clone [openstack-gnocchi-metricd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-notifier-clone [openstack-aodh-notifier]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-clone [openstack-heat-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-collector-clone [openstack-ceilometer-collector]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-glance-api-clone [openstack-glance-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-cinder-scheduler-clone [openstack-cinder-scheduler]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-api-clone [openstack-nova-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-consoleauth-clone [openstack-nova-consoleauth]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-sahara-api-clone [openstack-sahara-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-cloudwatch-clone [openstack-heat-api-cloudwatch]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-sahara-engine-clone [openstack-sahara-engine]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-glance-registry-clone [openstack-glance-registry]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-gnocchi-statsd-clone [openstack-gnocchi-statsd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-notification-clone [openstack-ceilometer-notification]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-cinder-api-clone [openstack-cinder-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-dhcp-agent-clone [neutron-dhcp-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-openvswitch-agent-clone [neutron-openvswitch-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-novncproxy-clone [openstack-nova-novncproxy]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: delay-clone [delay]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-server-clone [neutron-server]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-central-clone [openstack-ceilometer-central]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: httpd-clone [httpd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-cfn-clone [openstack-heat-api-cfn]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-conductor-clone [openstack-nova-conductor]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
PCSD Status:
overcloud-controller-0: Online
overcloud-controller-1: Online
overcloud-controller-2: Online
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
===============================================
Verification Galera in sync && rabbitmqctl cluster_status
===============================================
for Mitaka stable , please see Attempt of official Mitaka TripleO HA install via instack-virt-setup
Final version of instructions set may bee seen here :-
Stable Mitaka HA instack-virt-setup on CentOS 7.2 VIRTHOST
========================
TripleO QuickStart case
========================
First of all right before running `openstack overcloud deploy --templates .... `
Run on undercloud VM following commands :-
[stack@undercloud ~]$ sudo ovs-vsctl show
b8b5ecbc-dc8d-43b8-8f03-09896d1b08b3
Bridge br-int
fail_mode: secure
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
Port "tapd7a65b7a-48"
tag: 1
Interface "tapd7a65b7a-48"
type: internal
Bridge br-ctlplane
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Port br-ctlplane
Interface br-ctlplane
type: internal
Port "eth1"
Interface "eth1"
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
ovs_version: "2.5.0"
=============================
[root@undercloud ~]# ifconfig
br-ctlplane: flags=4163 mtu 1500
inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::28e:5aff:fe16:9ba1 prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:a1 txqueuelen 0 (Ethernet)
RX packets 3383615 bytes 264121585 (251.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 4873995 bytes 23750747704 (22.1 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.23.10 netmask 255.255.255.0 broadcast 192.168.23.255
inet6 fe80::28e:5aff:fe16:9b9f prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:9f txqueuelen 1000 (Ethernet)
RX packets 48092 bytes 42203536 (40.2 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 35731 bytes 4188571 (3.9 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::28e:5aff:fe16:9ba1 prefixlen 64 scopeid 0x20
ether 00:8e:5a:16:9b:a1 txqueuelen 1000 (Ethernet)
RX packets 3385562 bytes 264368815 (252.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 4876692 bytes 23773014677 (22.1 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 3065638 bytes 25610179577 (23.8 GiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3065638 bytes 25610179577 (23.8 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
virbr0: flags=4099 mtu 1500
inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
ether 52:54:00:eb:ef:39 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
vlan10: flags=4163 mtu 1500
inet 10.0.0.1 netmask 255.255.255.0 broadcast 10.0.0.255
inet6 fe80::5ce2:8eff:fed9:2f89 prefixlen 64 scopeid 0x20
ether 5e:e2:8e:d9:2f:89 txqueuelen 0 (Ethernet)
RX packets 1154 bytes 176564 (172.4 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 1759 bytes 22168381 (21.1 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
===============================================
Analyze code undercloud-post-install.sh following bellow
===============================================
[stack@undercloud ~]$ cat undercloud-post-install.sh
#!/bin/bash
# Prepare the undercloud for deploy
set -eux
# Source in undercloud credentials.
source /home/stack/stackrc
######################
# Set of standard commands
######################
# Upload images to glance.
openstack overcloud image upload \
openstack baremetal import --json instackenv.json
openstack baremetal configure boot
# Perform introspection if requested.
. . . . . . . .
################################################
# Here follows critical VM network configuration portion
################################################
# enable NAT for "external" network
RULE="-s 10.0.0.1/24 ! -d 10.0.0.1/24 -j MASQUERADE"
if ! sudo iptables -t nat -C BOOTSTACK_MASQ $RULE; then
sudo iptables -t nat -A BOOTSTACK_MASQ $RULE
sudo sh -c 'iptables-save > /etc/sysconfig/iptables'
fi
sudo bash -c 'cat < /etc/sysconfig/network-scripts/ifcfg-vlan10
DEVICE=vlan10
ONBOOT=yes
DEVICETYPE=ovs
TYPE=OVSIntPort
BOOTPROTO=static
IPADDR=10.0.0.1
NETMASK=255.255.255.0
OVS_BRIDGE=br-ctlplane
OVS_OPTIONS="tag=10"
EOF'
sudo ifup ifcfg-vlan10
# clone the t-h-t templates if needed
=========================================
So finally up on overcloud-deployment completion :-
=========================================
[root@undercloud ~]# ip netns
qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2
[root@undercloud ~]# ip netns exec qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2 ifconfig
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
tapd7a65b7a-48: flags=4163 mtu 1500
inet 192.0.2.5 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::f816:3eff:fe9d:1a65 prefixlen 64 scopeid 0x20
ether fa:16:3e:9d:1a:65 txqueuelen 0 (Ethernet)
RX packets 1109 bytes 103765 (101.3 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 943 bytes 91866 (89.7 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
[root@undercloud ~]# ip netns exec qdhcp-74126965-fbac-483d-9d8d-1c2ff43a2bd2 route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.0.2.1 0.0.0.0 UG 0 0 0 tapd7a65b7a-48
192.0.2.0 0.0.0.0 255.255.255.0 U 0 0 0 tapd7a65b7a-48
=======================================================
Get back to `ovs-vsctl show` on undercloud generated by QuickStart
=======================================================
Focus on device tapd7a65b7a-48 and vlan10
[stack@undercloud ~]$ sudo ovs-vsctl show
b8b5ecbc-dc8d-43b8-8f03-09896d1b08b3
Bridge br-int
fail_mode: secure
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane} <=== veth pair connecting br-int
Port br-int and br-ctlplane
Interface br-int
type: internal
Port "tapd7a65b7a-48"
tag: 1
Interface "tapd7a65b7a-48"
type: internal
Bridge br-ctlplane
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Port br-ctlplane
Interface br-ctlplane
type: internal
Port "eth1"
Interface "eth1"
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane} <=== veth pair connecting
ovs_version: "2.5.0" connecting br-int and
br-ctlplane
==================================================================
Now verify instack VM been built per Attempt of official Mitaka TripleO HA install via instack-virt-setup
==================================================================
[stack@ServerCentOS72 ~]$ virsh list --all
Id Name State----------------------------------------------------
2 instack running
- baremetalbrbm_0 shut off
- baremetalbrbm_1 shut off
- baremetalbrbm_2 shut off
- baremetalbrbm_3 shut off
[stack@ServerCentOS72 ~]$ ssh root@192.168.122.193
Last login: Mon Jul 25 13:59:52 2016 from 192.168.122.1
[root@instack ~]# su - stack
Last login: Mon Jul 25 13:59:54 UTC 2016 on pts/5
[stack@instack ~]$ . stackrc
[stack@instack ~]$ sudo ovs-vsctl show
bc1c13cd-3651-4f79-87df-bdaf4f5fec01
Bridge br-ctlplane
Port br-ctlplane
Interface br-ctlplane
type: internal
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
Port "eth1"
Interface "eth1"
Port "vlan10"
tag: 10
Interface "vlan10"
error: "could not open network device vlan10 (No such device)"
Bridge br-int
fail_mode: secure
Port "tap41e6fddf-31"
tag: 1
Interface "tap41e6fddf-31"
type: internal
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
ovs_version: "2.5.0"
[stack@instack ~]$ ifconfig
br-ctlplane: flags=4163 mtu 1500inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 0 (Ethernet)
RX packets 13 bytes 1038 (1.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 816 (816.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.122.193 netmask 255.255.255.0 broadcast 192.168.122.255
inet6 fe80::5054:ff:fe6f:906a prefixlen 64 scopeid 0x20
ether 52:54:00:6f:90:6a txqueuelen 1000 (Ethernet)
RX packets 1674 bytes 213273 (208.2 KiB)
RX errors 0 dropped 9 overruns 0 frame 0
TX packets 1078 bytes 163033 (159.2 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 1000 (Ethernet)
RX packets 8 bytes 648 (648.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 14 bytes 1108 (1.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 31888 bytes 10276736 (9.8 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 31888 bytes 10276736 (9.8 MiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
=======================================================
Thus any attempt to activate "Network Isolation" having External Network
running within
=======================================================
openstack overcloud deploy --templates --libvirt-type qemu \
--control-scale 3 \
--compute-scale 1 \
-e /usr/share/openstack-tripleo-heat-templates/environments/puppet-pacemaker.yaml \
--ntp-server pool.ntp.org
after committing all instructions from http://docs.openstack.org/developer/tripleo-docs/basic_deployment/basic_deployment_cli.html
is supposed to fail. Instack VM is missing device vlan10 supposed to become external interface attached as OVS port to br-ctlplane. What I believe was done in http://mariosandreou.com/tripleo/2016/06/17/deploy-tripleo-stable-mitaka.html without explicitly advertising.
=================================================================
Get back to post mentioned in the header , we want Mitaka Tripleo deployment
to run on instack VM with "Network Isolation" setting up External network,
Network serving VXLAN tunnels . In regards of Ceph Nodes overcloud deployment "Network Isolation" is obviously extremely important.
So, vlan10 device creation should be done with no doubts.
=================================================================
sudo bash -c 'cat < /etc/sysconfig/network-scripts/ifcfg-vlan10
DEVICE=vlan10
ONBOOT=yes
DEVICETYPE=ovs
TYPE=OVSIntPort
BOOTPROTO=static
IPADDR=10.0.0.1
NETMASK=255.255.255.0
OVS_BRIDGE=br-ctlplane
OVS_OPTIONS="tag=10"
EOF'
sudo ifup ifcfg-vlan10
sudo iptables -A BOOTSTACK_MASQ -s 10.0.0.0/24 ! -d 10.0.0.0/24 -j MASQUERADE -t nat
=============================
Make sure updates are done
=============================
[boris@ServerCentOS72 ~]$ sudo su -
[sudo] password for boris:
Last login: Tue Jul 26 03:58:20 MSK 2016 on pts/0
[root@ServerCentOS72 ~]# su - stack
Last login: Tue Jul 26 03:58:45 MSK 2016 on pts/0
[stack@ServerCentOS72 ~]$ ssh root@192.168.122.193
Last login: Tue Jul 26 01:01:49 2016
[root@instack ~]# su - stack
Last login: Tue Jul 26 01:01:34 UTC 2016 on pts/0
[stack@instack ~]$ sudo ovs-vsctl show
bc1c13cd-3651-4f79-87df-bdaf4f5fec01
Bridge br-ctlplane
Port "eth1"
Interface "eth1"
Port br-ctlplane
Interface br-ctlplane
type: internal
Port phy-br-ctlplane
Interface phy-br-ctlplane
type: patch
options: {peer=int-br-ctlplane}
Port "vlan10"
tag: 10
Interface "vlan10"
type: internal
Bridge br-int
fail_mode: secure
Port "tap41e6fddf-31"
tag: 1
Interface "tap41e6fddf-31"
type: internal
Port int-br-ctlplane
Interface int-br-ctlplane
type: patch
options: {peer=phy-br-ctlplane}
Port br-int
Interface br-int
type: internal
ovs_version: "2.5.0"
[stack@instack ~]$ ifconfig
br-ctlplane: flags=4163 mtu 1500
inet 192.0.2.1 netmask 255.255.255.0 broadcast 192.0.2.255
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 0 (Ethernet)
RX packets 2751712 bytes 205714576 (196.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2711617 bytes 12789727774 (11.9 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
inet 192.168.122.193 netmask 255.255.255.0 broadcast 192.168.122.255
inet6 fe80::5054:ff:fe6f:906a prefixlen 64 scopeid 0x20
ether 52:54:00:6f:90:6a txqueuelen 1000 (Ethernet)
RX packets 4767 bytes 590862 (577.0 KiB)
RX errors 0 dropped 9 overruns 0 frame 0
TX packets 3138 bytes 488880 (477.4 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1500
inet6 fe80::297:fff:fe5c:c66c prefixlen 64 scopeid 0x20
ether 00:97:0f:5c:c6:6c txqueuelen 1000 (Ethernet)
RX packets 2751684 bytes 205708317 (196.1 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2711674 bytes 12789742191 (11.9 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73 mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10
loop txqueuelen 0 (Local Loopback)
RX packets 319388 bytes 1493930109 (1.3 GiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 319388 bytes 1493930109 (1.3 GiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
vlan10: flags=4163 mtu 1500
inet 10.0.0.1 netmask 255.255.255.0 broadcast 10.0.0.255
inet6 fe80::1478:deff:fe20:7b86 prefixlen 64 scopeid 0x20
ether 16:78:de:20:7b:86 txqueuelen 0 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 12 bytes 816 (816.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
==================================================
Proceed as follows. Create file network-environment template :-
==================================================
[stack@instack ~]$ cat network_env.yaml
{
"parameter_defaults": {
"ControlPlaneDefaultRoute": "192.0.2.1",
"ControlPlaneSubnetCidr": "24",
"DnsServers": [
"192.168.23.1"
],
"EC2MetadataIp": "192.0.2.1",
"ExternalAllocationPools": [
{
"end": "10.0.0.250",
"start": "10.0.0.4"
}
],
"ExternalNetCidr": "10.0.0.1/24",
"NeutronExternalNetworkBridge": ""
}
}
=====================
Then run :-
=====================
[stack@instack ~]$ source stackrc
[stack@instack ~]$ openstack overcloud deploy --templates --control-scale 3 \
--compute-scale 1 \
--libvirt-type qemu \
--ntp-server pool.ntp.org \
-e /usr/share/openstack-tripleo-heat-templates/environments/puppet-pacemaker.yaml \
-e /usr/share/openstack-tripleo-heat-templates/environments/network-isolation.yaml \
-e /usr/share/openstack-tripleo-heat-templates/environments/net-single-nic-with-vlans.yaml \
-e $HOME/network_env.yaml
. . . .
Stack overcloud CREATE_COMPLETE
/home/stack/.ssh/known_hosts updated.
Original contents retained as /home/stack/.ssh/known_hosts.old
Skipping "horizon" postconfig because it wasn't found in the endpoint map output
PKI initialization in init-keystone is deprecated and will be removed.
Warning: Permanently added '192.0.2.16' (ECDSA) to the list of known hosts.
The following cert files already exist, use --rebuild to remove the existing files before regenerating:
/etc/keystone/ssl/certs/ca.pem already exists
/etc/keystone/ssl/private/signing_key.pem already exists
/etc/keystone/ssl/certs/signing_cert.pem already exists
Connection to 192.0.2.16 closed.
Overcloud Endpoint: http://10.0.0.4:5000/v2.0
Overcloud Deployed
[stack@instack ~]$ nova list
+--------------------------------------+-------------------------+--------+------------+-------------+---------------------+ | ID | Name | Status | Task State | Power State | Networks | +--------------------------------------+-------------------------+--------+------------+-------------+---------------------+ | 068dcf61-1c07-49d3-97f9-66e0ff1896e4 | overcloud-controller-0 | ACTIVE | - | Running | ctlplane=192.0.2.19 | | 1083bc50-4e30-4a8d-8a02-d60c35bab0b7 | overcloud-controller-1 | ACTIVE | - | Running | ctlplane=192.0.2.18 | | 3d88de4e-2c25-4a7e-ac05-580d5e4532f5 | overcloud-controller-2 | ACTIVE | - | Running | ctlplane=192.0.2.20 | | f4589428-ba17-44f5-b73c-db38af7963e9 | overcloud-novacompute-0 | ACTIVE | - | Running | ctlplane=192.0.2.17 | +--------------------------------------+-------------------------+--------+------------+-------------+---------------------+
[stack@instack ~]$ neutron net-list
+--------------------------------------+--------------+--------------------------------------------+ | id | name | subnets | +--------------------------------------+--------------+--------------------------------------------+ | cc29c009-f2c8-457c-a92c-021acf650b78 | tenant | 3afaf44d-19b5-46ac-8534-fe1520a14a1c | | | | 172.16.0.0/24 | | e8e8d778-1992-4ee2-9b4e-ac349e8d7985 | external | 8ad5eeef-6860-4781-89e6-5132cf633013 | | | | 10.0.0.0/24 | | 00bbd0fb-94b0-406a-b5b1-aa60b5526898 | internal_api | 1b84e01e-deb9-458c-990a-94d92f69f668 | | | | 172.16.2.0/24 | | 65d426b0-0b02-4654-b598-1ba368a43d35 | storage | 849719fb-877c-49f7-a606-959e4720011d | | | | 172.16.1.0/24 | | 687769a2-5438-434d-8085-2988e592755b | storage_mgmt | fc36759d-25ee-4cbe-908b-819dad6a222d | | | | 172.16.3.0/24 | | 584468f0-d26e-4a47-89a1-bca5847404fb | ctlplane | 43d05014-098b-4eb5-8582-178404ff0e24 | | | | 192.0.2.0/24 | +--------------------------------------+--------------+--------------------------------------------+
[stack@instack ~]$ ssh heat-admin@192.0.2.19
The authenticity of host '192.0.2.19 (192.0.2.19)' can't be established.
ECDSA key fingerprint is 61:31:94:19:12:51:a3:df:be:22:f6:0a:e7:dc:a1:d7.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.0.2.19' (ECDSA) to the list of known hosts.
Last login: Tue Jul 26 02:00:36 2016 from 192.0.2.1
[heat-admin@overcloud-controller-0 ~]$ sudo su -
[root@overcloud-controller-0 ~]# pcs status
Cluster name: tripleo_cluster
Last updated: Tue Jul 26 02:03:03 2016 Last change: Tue Jul 26 01:58:37 2016 by root via cibadmin on overcloud-controller-0
Stack: corosync
Current DC: overcloud-controller-2 (version 1.1.13-10.el7_2.2-44eb2dd) - partition with quorum
3 nodes and 127 resources configured
Online: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Full list of resources:
ip-192.0.2.16 (ocf::heartbeat:IPaddr2): Started overcloud-controller-0
ip-172.16.2.5 (ocf::heartbeat:IPaddr2): Started overcloud-controller-1
ip-172.16.3.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-2
Clone Set: haproxy-clone [haproxy]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Master/Slave Set: galera-master [galera]
Masters: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: memcached-clone [memcached]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
ip-10.0.0.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-0
ip-172.16.2.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-1
ip-172.16.1.4 (ocf::heartbeat:IPaddr2): Started overcloud-controller-2
Clone Set: rabbitmq-clone [rabbitmq]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-core-clone [openstack-core]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Master/Slave Set: redis-master [redis]
Masters: [ overcloud-controller-0 ]
Slaves: [ overcloud-controller-1 overcloud-controller-2 ]
Clone Set: mongod-clone [mongod]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-evaluator-clone [openstack-aodh-evaluator]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-scheduler-clone [openstack-nova-scheduler]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-l3-agent-clone [neutron-l3-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-netns-cleanup-clone [neutron-netns-cleanup]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-ovs-cleanup-clone [neutron-ovs-cleanup]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
openstack-cinder-volume (systemd:openstack-cinder-volume): Started overcloud-controller-0
Clone Set: openstack-heat-engine-clone [openstack-heat-engine]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-api-clone [openstack-ceilometer-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-listener-clone [openstack-aodh-listener]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-metadata-agent-clone [neutron-metadata-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-gnocchi-metricd-clone [openstack-gnocchi-metricd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-aodh-notifier-clone [openstack-aodh-notifier]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-clone [openstack-heat-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-collector-clone [openstack-ceilometer-collector]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-glance-api-clone [openstack-glance-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-cinder-scheduler-clone [openstack-cinder-scheduler]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-api-clone [openstack-nova-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-consoleauth-clone [openstack-nova-consoleauth]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-sahara-api-clone [openstack-sahara-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-cloudwatch-clone [openstack-heat-api-cloudwatch]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-sahara-engine-clone [openstack-sahara-engine]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-glance-registry-clone [openstack-glance-registry]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-gnocchi-statsd-clone [openstack-gnocchi-statsd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-notification-clone [openstack-ceilometer-notification]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-cinder-api-clone [openstack-cinder-api]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-dhcp-agent-clone [neutron-dhcp-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-openvswitch-agent-clone [neutron-openvswitch-agent]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-novncproxy-clone [openstack-nova-novncproxy]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: delay-clone [delay]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: neutron-server-clone [neutron-server]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-ceilometer-central-clone [openstack-ceilometer-central]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: httpd-clone [httpd]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-heat-api-cfn-clone [openstack-heat-api-cfn]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
Clone Set: openstack-nova-conductor-clone [openstack-nova-conductor]
Started: [ overcloud-controller-0 overcloud-controller-1 overcloud-controller-2 ]
PCSD Status:
overcloud-controller-0: Online
overcloud-controller-1: Online
overcloud-controller-2: Online
Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled
===============================================
Verification Galera in sync && rabbitmqctl cluster_status
===============================================
No comments:
Post a Comment
